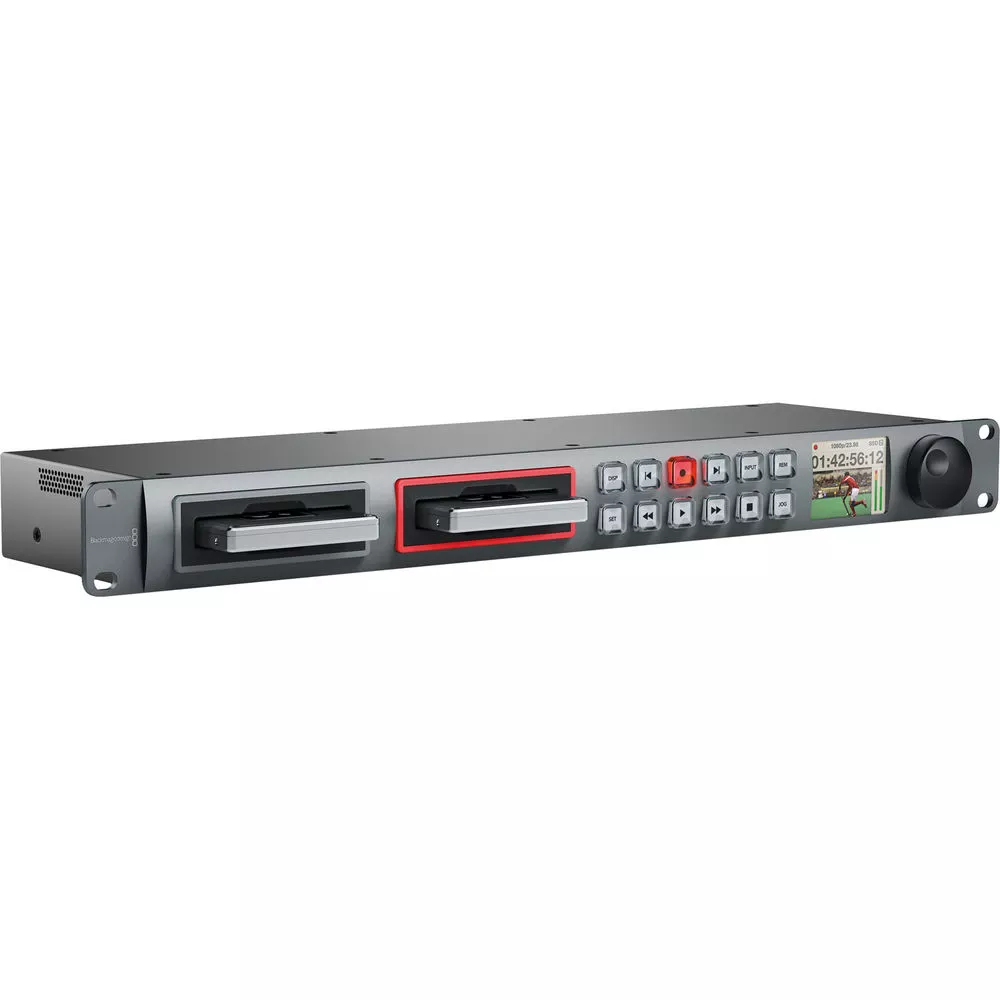

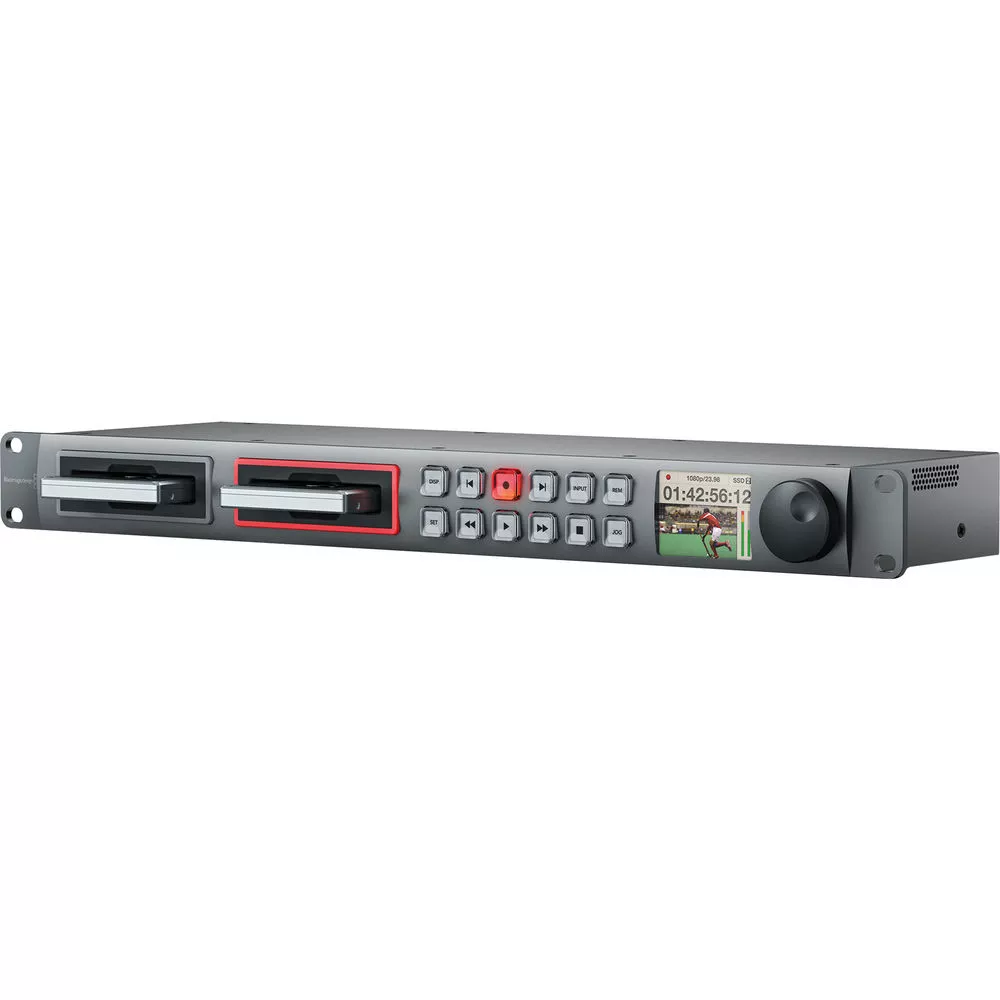

Blackmagic Design HyperDeck Studio 2
- 1RU File-Based Video Recorder
- Records Uncompressed 10-bit 4:2:2
Ürünü Mağazamızda Dene
İstanbul içi
Vip Kurye ile
Teslimat
Mağazamıza Gelip
Elden Teslim Alın.
The Blackmagic Design HyperDeck Studio 2 is a file-based deck that features the same functionality and control of professional tape decks. It records uncompressed video with 4:2:2 color sampling at 10-bit in Quicktime format, and also records video using either ProRes or DNxHD codecs. With two SSD slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other. The HyperDeck Studio features one 3G-SDI input and three SD/HD/3G-SDI outputs plus a loopthrough output, and one HDMI input and one HDMI output. All outputs, except the loopthrough SDI, are always active, so playback is available on both the SDI and HDMI outputs no matter what input it was recorded from.
The Studio 2 is a 1RU rack mountable unit, with built-in rack mount ears. It features illuminated front panel button control and a jog/shuttle wheel for analog scrubbing. RS-422 control is supported for external control. You can also control the unit using either the USB port or over Ethernet via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video, and display timecode and transport information.
- File-Based Recording
- The HypeDeck Studio 2 records to uncompressed Quicktime at 10-bit with 4:2:2 color sampling. It also records to ProRes 422(HQ), Avid DNxHD and Avid DNxHD MXF
- Two SSD Bays
- The unit incorporates two 2.5" SSD slots that allow you to record almost endlessly as recording seamlessly switches from one SSD to the other as the first one fills up.
- Video Signals
- The HyperDeck Studio 2 features separate dedicated input & output connectors, and supports SD/HD signals over SDI and HDMI. In addition to NTSC and PAL signals, 720 x 480p and 720 x 576p signals are only supported over HDMI.
- VTR Style Controls

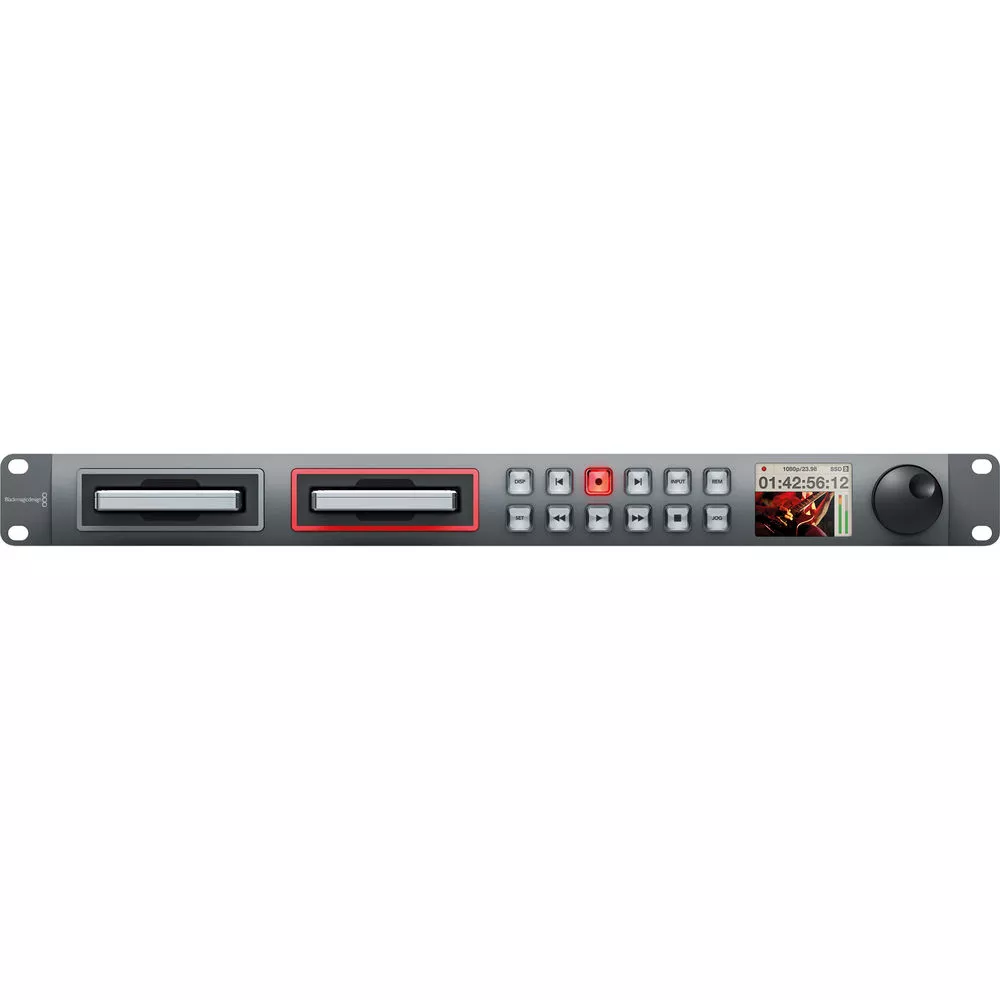

- The HyperDeck Studio 2 features VTR style front panel controls for record and playback. With illuminated buttons, for working in dim locations or settings, while a built-in jog/shuttle wheel provides analog style control over your playback.
- Outputs
-
- The HyperDeck Studio 2 features one HDMI, two SDI, and one SDI monitor out which are always active, no matter what the original input signal is. The exception is with 480p & 576p signals over HDMI, these signals will only play back over the HDMI output.
- The unit also features a loopthrough SDI output that only passes the signal from the SDI input, and does not output recorded video from the SSDs.
- Remote
- The unit is controllable via RS-422 control and over the Ethernet or USB port.
- Built-In LCD Monitor
- The unit′s front panel also features a built-in LCD screen that allows you to monitor input or playback video as well as timecode, format, and audio levels.
- SDI Connectors
- The unit′s SDI connectors are 3G capable, but currently the unit only supports HD video up to 1.5Gb/s (HD-SDI).
- Included Software
- The HyperDeck Studio 2 includes HyperDeck Utility.
| Video Input |
Digital Video 1 x SDI (10-bit SD/HD/3G switchable) 1 x HDMI 1.4 type A |
| Video Output |
Digital Video 1 x SDI Loop Through(10-bit SD/HD/3G switchable) 2 x SDI (10-bit SD/HD/3G switchable) 1 x SDI Monitor Output (10-bit SD/HD/3G switchable) 1 x HDMI 1.4 type A |
| Audio Input |
Digital SDI 16 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files. HDMI 8 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files. |
| Audio Output |
SDI 16 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files. HDMI 8 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files. |
| Computer Interface | 1 x USB 2.0 mini B-type for initial setup, software updates and HyperDeck Utility software control |
| SSD Interface | 2 x 2.5" SATA 3Gb/s |
| Sync Input | Blackburst or Tri-Sync |
| Device Control | Sony compatible RS-422 deck control port |
| Recorder |
Recorder control: 12 buttons and jog wheel for local control / or use either RJ45 Ethernet or USB 2.0 high speed interface Recorder configuration: use USB 2.0 high speed interface |
| Format Support |
SD NTSC/PAL 525 29.97 / 625 25 (525 59.94i / 625 50i) 480p60 and 576p50 via HDMI only HD 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/p30 |
| SDI Compliance | SMPTE 259M, SMPTE 292M |
| SDI Metadata Support | HD RP188 and closed captioning |
| Sampling | Video: 4:2:2 Audio: 48kHz/24-bit |
| Color Precision | 10-bit |
| Color Space |
REC 601 REC 709 |
| Multiple Rate Support | SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Codecs Supported |
Uncompressed QuickTime Apple ProRes 422 (HQ) QuickTime Apple ProRes 422 (LT) QuickTime Apple ProRes 422 (Proxy) QuickTime Avid DNxHD QuickTime Avid DNxHD MXF |
| Display | Built-in LCD for video, audio and timecode monitoring |
| Rack Size | 1RU / less than 7" deep (approx. less than 18 cm) |
| Power Supply |
Built-in international AC power supply with IEC C14 inlet 110-240V, 50-60Hz Note: AC power cord is not included |
