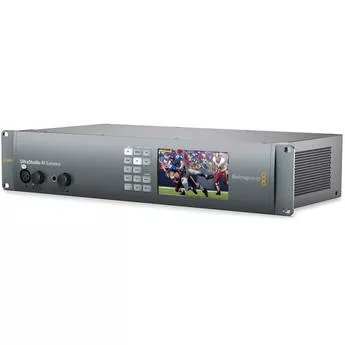

Name: UltraStudio 4K Extreme 3
Brand: Blackmagic Design
SKU: BDLKULSR4KEXTR/3
Price: 203678.1 TRY
Availability: SoldOut
Rating: 4 (1 reviews)

Ürün Açıklaması

Teknik Özellikler

Taksit Seçenekleri

Ürün Yorumları

Sıkça Sorulan Sorular

Aksesuarlar

UltraStudio 4K Extreme 3, PCI Express ve Thunderbolt bilgisayarları için dünyanın en gelişmiş yakalama ve playback çözümüdür. İnanılmaz hızdaki 40Gb/sn Thunderbolt 3, derin renk ile saniyede 60 kareye kadar çalışabilen ileri 12G‑SDI ve HDMI 2.0 bağlantılar, 12‑bit RGB, HDMI 2.0a aracılığıyla HDR iş akışları için destek ve müthiş büyük 4K kare boyutları içerir. En geniş analog ve dijital bağlantı çeşitlerini içeren UltraStudio 4K Extreme 3 adeta her türlü kamera, deck ünitesi, yönlendirici veya ekran ile uyumuludur. Gerçek zamanlı H.265 Kodlamayı destekleyen müthiş güçlü dahili donanım kodlayıcı dahi içerir!

Kılavuzu İndir Yazılımı İndir

Kutu İçeriği

Blackmagic Design UltraStudio 4K Extreme

Software SD Card
Resolve Lite SD Card
Limited 3-Year Warranty

Blackmagic Design

Markaya Git

SDI Video Input	2 x 12G-SDI 2 x 6G-SDI Supports: SD/HD/2K/4K; single/dual/quad-link; 4:2:2/4:4:4; 2D/3D switchable
SDI Video Loop	4 x SDI (reclocked) Supports: SD/HD/2K/4K (linked to corresponding inputs)
SDI Video Output	2 x 12G-SDI 2 x 6G-SDI Supports: SD/HD/2K/4K; single/dual/quad-link; 4:2:2/4:4:4; 2D/3D switchable
Analog Video Input	2 x 12G-SDI 2 x 6G-SDI Supports: SD/HD/2K/4K; single/dual/quad-link; 4:2:2/4:4:4; 2D/3D switchable
Fiber Optic Connectors	2 x Fiber Cages (fiber optic modules available separately) Supports: 12G-SDI
HDMI Video Input	1 x HDMI 2.0 type A connector Supports: Up to 2160p60
HDMI Video Output	1 x HDMI 2.0 type A connector Supports: Up to 2160p60
Analog Video Input	1 x Component (YUV) on 3 BNCs 1 x Composite (NTSC/PAL) on 1 BNC
Analog Video Output	1 x Component (YUV) on 3 BNCs 1 x Composite (NTSC/PAL) on 1 BNC
SDI Audio Input	16 Channels SDI-embedded (SD/HD/2K/4K resolutions)
SDI Audio Output	16 Channels SDI-embedded (SD/HD/2K/4K resolutions)
HDMI Audio Input	8 Channels embedded (SD/HD/4K resolutions)
HDMI Audio Output	8 Channels embedded (SD/HD/4K resolutions)
Analog Audio Input	4 x XLR (balanced) 1 x Stereo RCA (unbalanced)
Analog Audio Output	4 x XLR (balanced)
Mic Input	1 x XLR (balanced) on front panel (+48 V phantom power selectable via software)
Headphone Jack	1 x 1/4" on front panel
AES/EBU Audio Input	2 x BNC (unbalanced with sample rate converter)
AES/EBU Audio Output	2 x BNC (unbalanced)
Timecode Input	1 x XLR
Timecode Output	1 x XLR
Sync Input	1 x BNC Supports: Blackburst in SD or tri-level sync in HD
Sync Output	1 x BNC loop-out Supports: Blackburst in SD or tri-level sync in HD
Device Control	2 x RS-422 on DB9 female (Sony compatible) Note: RS-422 ports Tx/Rx direction reversible via software
Computer Interface	2 x Thunderbolt 2.0 1 x PCIe host port 1 x USB 3.0 type B female

Supported Standards
SDI Standards	SD 525/29.97 (NTSC), 625/25 (PAL) HD 1280 x 720p: 50, 59.94, 60 1920 x 1080i: 50, 59.94, 60 1920 x 1080PsF: 23.98, 24, 25, 29.97, 30 1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2K 2048 x 1080PsF: 23.98, 24, 25 2048 x 1080p: 23.98, 24, 25 4K 3840 x 2160p (UHD 4K): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 4096 x 2160p (DCI 4K): 23.98, 24, 25
SMPTE Compliance	SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level A, SMPTE 425M level B, ITU-R BT.656, ITU-R BT.601
SDI Video Sampling	4:2:2, 4:4:4, 4:4:4:4
SDI Color Precision	YUV (4:2:2): 8, 10-bit RGB (4:4:4): 8, 10, 12-bit
SDI Color Space	REC 601, REC 709
SDI Audio Sampling	48 kHz; 24-bit
SDI Metadata Support	VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file HD RP188 Closed captioning
Note	SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD
HDMI Standards	SD 525/29.97 (NTSC), 625/25 (PAL) HD 1280 x 720p: 50, 59.94, 60 1920 x 1080i: 50, 59.94, 60 1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 4K 3840 x 2160p (UHD 4K): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 4096 x 2160p (DCI 4K): 23.98, 24
HDMI Video Sampling	4:2:2, 4:4:4
HDMI Color Precision	HD: 10-bit RGB 4K: 10-bit YUV
HDMI Audio Sampling	48 kHz; 24-bit
Note	HDMI 2.0 supports Deep Color and automatically configures to connected display
Multiple Rate Support	HDMI and SDI video connections are switchable between SD/HD/2K and 4K Component analog video connections are switchable between SD and HD
Copy Protection	HDMI input is unable to capture from copy protected HDMI sources

Processing
Encoding	Hardware-based real-time H.265 encoder
Colorspace Conversion	Hardware-based real-time
3D Processing	Dual stream and frame packed capture and playback
4K Down-Conversion	Hardware down-converter outputs UHD 4K to HD or HD to SD on SDI B and SD on component and NTSC/PAL For analog output: Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9, and center cut 4:3
HD Up-Conversion	Hardware up-conversion from SD to 720p or 1080 on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
HD Cross-Conversion	Hardware cross conversion from 720p to 1080i and 1080i to 720p on playback
Supported Codecs	AVC-Intra, AVCHD, Canon XF MPEG2, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

System Requirements
Operating System	OS X: 10.9 (Mavericks), 10.10 (Yosemite), or later Windows: 7, 8
Connectivity	Thunderbolt port or an available PCIe slot Note: PCIe cable and interface card available separately
Supported Applications	DaVinci Resolve Fusion n Final Cut Pro X Premiere Pro CC Avid Media Composer After Effects CC Avid Pro Tools Steinberg Cubase Steinberg Nuendo Photoshop CC Applications Supporting Real-Time Effects: DaVinci Resolve Final Cut Pro X Premiere Pro CC (Mercury Playback Engine) Avid Media Composer Additional Supported Applications: Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in and live:cut and just:play and just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro and Studio and Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity and InfoCaster

General
Power Supplies	2 x Built-in AC power Supplies with IEC C14 (universal) connectors Support: 120 to 240 VAC, 50 to 60 Hz
Power Requirements	120 to 240 VAC; 50 to 60 Hz (dual power supplies)
Çalışma Aralığı(Sıcaklık)	41 to 104°F / 5 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Relative Humidity	0 to 90% non-condensing
Ölçüler	Not specified by manufacturer
Ağırlık	Not specified by manufacturer

Shipping Info
Shipping Ağırlık	4.5 lb
Box Ölçüler (WxHxD)	0.0 x 0.0 x 0.0
