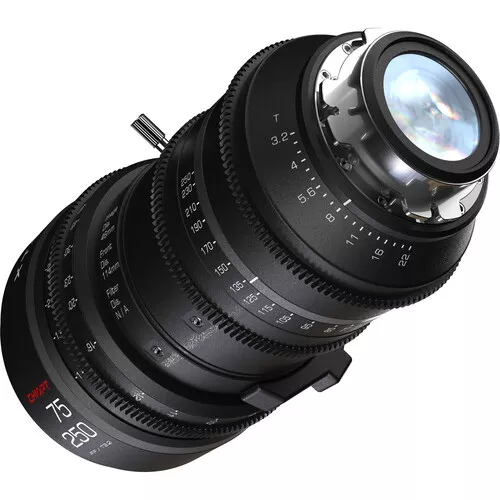

CHIOPT XTREME 75-250mm T3.2 Compact Zoom Cine Lens (PL Mount)

Lens Mount: PL/EF/E

Focal Length: 75- 250mm

Zoom Ratio: 3.5x

Minimum T Stop: T3.2(F2.8)

Aperture Range: T3.2-T22

Imaging Circle（Image Diameter):￠46mm

Flange Distance: 52mm(PL)/44mm(EF)/ 18mm(E)

MOD From Lens Front: 1.5m:

MOD From Sensor Plane: 1.8m

MOD Magnification: 0.05-0.18X

Shooting Area for MOD: 75mm:（646*429mm） 250mm:（197*133mm)

Horizontal FOV (Field Of View): 26.8~8.2°

Vertical FOV (Field Of View): 17.9~5.54°

Diagonal FOV (Field Of View): 32~9.7°

Number of Iris Blades: 11PCs

Angle of Aperture Ring Rotation: 84°

Angle of Zoom Rotation: 104°

Angle of Focusing Ring Rotation: 288°

Maximum Diameter VS Length:￠122*228（PL）*229（EF）*254.5（E）

Weight: 2.9 (PL) /2.95 (EF) /3.1KG (E )

Front Diameter:￠114mm

Filter: N/A
