Paugge 2 Port HDMI Splitter - (Hdmi 2.0b 4K60Hz HDR, Optic Ses Çıkış)

1. Introduction

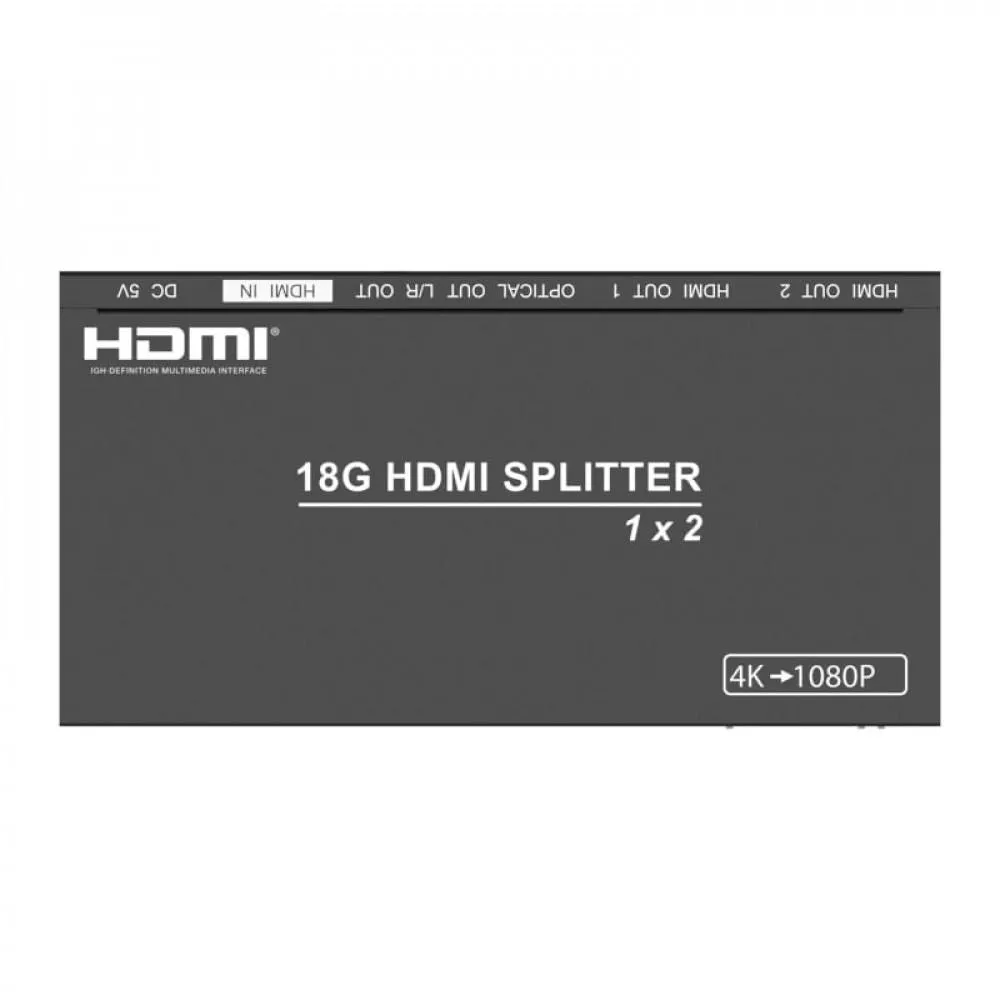

Paugge 1x2 HDMI 2.0b Splitter simultaneously one route HDMI source to four routes HDMI display. It supports resolution up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting.

Output supports bypass and downscaler(4K->1080P) function.

2. Features

☆ HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.

☆ Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)

☆ Supports digital and analog audio extract output from HDMI source.

☆ Supports output bypass and 4K->1080P downscaler function via dial switch on panel.

☆ EDID can be selected COPY and AUTO modes via dial switch on panel.

(COPY: It copys OUT 1 port EDID setting to all outputs port, If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1~2 capable EDID is detected then the unit will copy HDMI OUT 3...etc. The priority order is OUT 1 to OUT 4.

AUTO: Compare OUT 1~OUT 2 EDID setting and output the best resolution to all outputs).

☆ Supports analog audio PCM 2.0.

☆ Supports optical audio pass-through format about LPCM 2.0/2.1/5.1CH,Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.

3. Package Contents

① 1× 1×2 HDMI 2.0 Splitter

② 1× 5V/1A Power Adapter

③ 1× User Manual

Ürün Kullanıcı Klavuzunu indirmek için tıklayın!
