Tilta 15mm Lightweight Baseplate / Dovetail Plate

Yorumları Oku (0)
  • • DSLR ve orta boy kameralar için
  • • 5" ve 10" quickrelease plakalar
  • • 1/4"-20 ve 3/8"-16 montaj delikleri
Ürün kısa bir süreliğine temin edilememektedir. (Aynı Gün Kargo) ( Gün Kargoda) Taksit Seçenekleri
İNDİRİM
{%URUN_PIYASAFIYAT_KDV_DAHIL_YTL%} TL Fiyat Sorunuz TL
Havale Fiyatı Fiyat Sorunuz TL

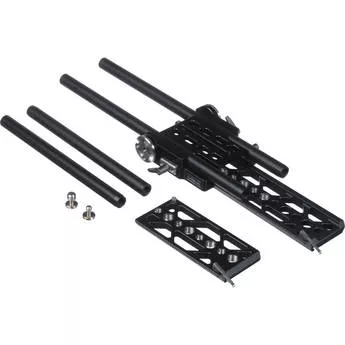

The Tilta 15mm Lightweight Baseplate / Dovetail Plate from ikan is a 15mm rod support system designed for DSLR cameras and small to medium sized camcorders. The combo design features a baseplate with adjustable 15mm rod ports, 5" and 10" dovetail plates for better balancing of rigs on tripods, and solid machined aluminum construction. Two sets of 15mm rod pairs come included, in lengths of 7.87" and 11.8".

Your camera mounts to the baseplate via a 1/4"-20 or 3/8"-16 screw. Ports are available for using 15mm rod pairs. Levers on the side of the baseplate allow for adjusting the position of the rods. The baseplate also has two Arri compatible rosettes on each side for connecting dog bones, handles, or other accessories.

For mounting the baseplate onto tripods, two dovetail plates are provided. The dovetail plate is attached to the tripod using the provided 1/4"-20 and 3/8"-16 threads. The baseplate slides onto the dovetail plate, letting you quickly attach and release your entire rig from the tripod.

The 5" dovetail plate is suitable for smaller rigs, while the 10" plate allows larger rigs to be centered and balanced. The 10" dovetail plate locks in via a lever on the side of the baseplate, and the 5" dovetail plate locks in with a thumb screw. Both dovetail plates have safety stops on both ends.



Material of Construction Machined aluminum
Mounting Threads 5" Dovetail plate:
4 x 1/4"-20 threads
4 x 3/8" threads

10" Dovetail plate:
2 x 1/4"-20 threads
3 x 3/8" threads
Ölçüler 15mm rods pair 1: 7.9" (20.0 cm)
15mm rods pair 2: 11.8" (30.0 cm)
Baseplate: 3.54 x 3.96" (8.99 x 10.06 cm)
5" Dovetail plate: 2.26 x 4.92" (5.74 x 12.50 cm)
10" Dovetail plate: 2.26 x 9.92" (5.74 x 25.20 cm)
Ağırlık Baseplate: 10.0 oz (283.5 g)
5" Dovetail plate: 3.0 oz (85.0 g)
10" Dovetail plate: 6.0 oz (170.1 g)
